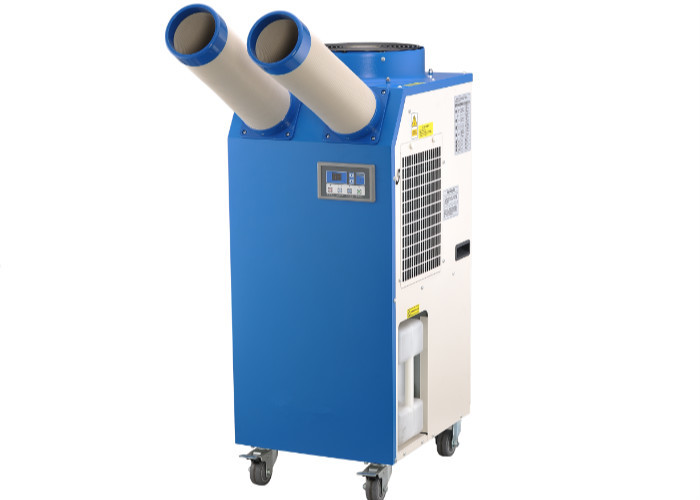

3500W Industrial Spot Coolers 11900BTU Air Cooling, Two Hoses Spot
Cooler
We specially developed this portable air cooler/air conditioner for
industrial ways, be able to lower temperature for indoor and
outdoor to creat a cooling environment. Design with portable mobile
wheels, easy to move to anywhere. Also with 14 Liters big water
tank and adjustable air outlet.
However, These portable ac systems are preferred because of their
convenience and efficiency -- no water lines need to be introduced
in the desired room. Our portable air conditioners use ambient air
in the surrounding environment so they don’t need any kind of
special intake system to operate
FEATURES
1. All-steel housing with self-contained pulleys is durable, light
and flexible.
2. Large air volume, strong cooling, low energy consumption, low
noise, long life, stable operation.
3. The use of advanced R410A refrigerant, green, healthy and
comfortable.
4. The use of advanced imported compressors can be effectively
cooled at a high temperature of 45°C.
5. The use of automatic control system, with automatic diagnostics
to effectively prevent adverse operations and other conditions on
the damage to the machine.
CAUTIONS
1. This product is industrial cooling air conditioning equipment,
non-domestic products.
2. This product is a local cooling air conditioning equipment,
cooling and cooling on the same machine, different from the
traditional home split air conditioner.
3. The design and use environment of this product is 18-45°C. Below
or above this temperature range, the equipment cannot operate
normally, and the non-product itself is faulty.
4. The noise of this product is 60-70 decibels, which is not
suitable for occasions where noise is required (such as bedrooms,
conference rooms, offices, libraries, etc.).
5, before purchase, please confirm the product parameters,
including product voltage, frequency, size, weight, air flow,
cooling capacity, etc. have been marked in the product, please
check carefully.
Technical data
| Model | WX35 |
| BTU | 11900 |
| Voltage /Cycle | 220VAC/50Hz |
| compressor consumption | 1.4KW |
| Air flow | 470m³/h |
| Refrigerant | R410A |
| Noise | 50-55db |
| Working temperature | 18-45℃ |
| Size | 450 * 510 *1100mm |
| Weight | 60kg |
| Outlet pipe | 1 |
Maintenance:
There are two fi lters in the unit. The evaporator fi lter is
located at the front of the unit. The condenser fi lter is located
at the side of the unit.
1. loosen up 2 bolts on the front fi lter guard.
2. Slide fi lter up and use a vacuum cleaner to remove the dust
from the fi lter.
3. Dry the fi lter in a shaded area before replacing it. Do not
operate the unit without the fi lter installed and the fi lter
guard in the closed position.
4. Replace the clean fi lter and close the fi lter guard.
5. To clean the condenser fi lter, lift up on the side fi lter from
the middle bar slightly and then angle the fi lter outwards from
the bottom and remove.
General Safety Information:
DO NOT use the unit in wet environments, such as a laundry room, to
avoid the risk of electrical shock.
1. DO NOT place any foreign objects on the unit.
2. DO NOT operate the unit with wet or damp hands.
3. DO NOT allow chemical substances to come into contact with the
unit.
4. DO NOT operate the unit in the presence of fl ammable substances
or vapors such as alcohols, pesticides, gasoline, etc.
DO NOT operate the unit in explosive or fl ammable environments
1. DO NOT use the plug to start and to stop the unit. Always use
the control panel to start and to stop the unit.
2. Always turn off the unit when it is not in use and unplug the
power plug from the electrical outlet
3. Always turn the unit off and unplug the main power plug from the
electrical outlet before cleaning, moving or performing
maintenance.
